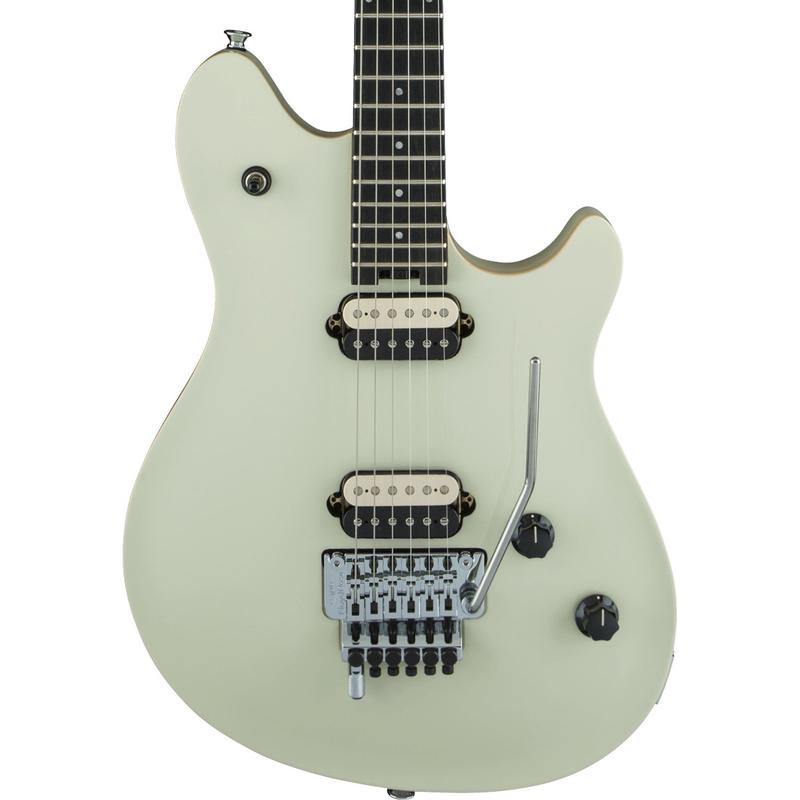

EVH Wolfgang Special Ebony Fingerboard – Ivory

EVH Wolfgang Special Ebony Fingerboard – Ivory

Road-tested in arenas around the world, the Wolfgang Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn maple neck. The neck is carved and rolled to Eddie Van Halens exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12-16 compound radius ebony fingerboard has 22 jumbo frets and pearloid dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

A pair of flagship custom-designed EVH Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

Features:

General

Series: Wolfgang Special
Orientation: Right-Hand
Color: Ivory
Model #: 5107701549
CASE/GIG BAG: Optional EVH Wolfgang Hardshell (p/n 009-0916-000); Optional EVH Black Gig Bag (p/n 022-1512-006)

Neck

Headstock: EVH Wolfgang
Neck Material: Quartersawn Maple
Neck Finish: Hand-Rubbed Satin Urethane
Neck Shape: Wolfgang Backshape
Neck Construction: Bolt-On with Graphite Reinforcement
Neck Thickness: .805″ at 3rd & .890″ at 12th Fret
Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: Pearloid Dot
Number of Frets: 22
Truss Rod: EVH-Branded with Wheel
Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
String Nut: Floyd Rose R2 Locking
Nut Width: 1.625″ (41.3 mm)
Nut Material: Floyd Rose R2 Locking

Body

Body: Basswood
Body Finish: Gloss Urethane
Body Shape: Wolfgang
Body Binding: 1-Ply Cream
Body Material: Basswood

Hardware

Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
Tremolo Block: Brass
Pickup Covers: Zebra
Control Knobs: Black Knurled with White Indicator
Switch Tip: Black
Hardware Finish: Chrome
Tuning Machines: EVH-Branded Gotoh
String Trees: Floyd Rose Retainer Bar
Strings: EVH Nickel Plated Steel (.009-.042 Gauges)
Tremolo Arm: Floyd Rose 1000 Series Locking
Strap Buttons: Oversized

Electronics

Bridge Pickup: Direct Mount EVH Wolfgang Humbucking
Neck Pickup: Direct Mount EVH Wolfgang Humbucking
Pickup Configuration: HH
Controls: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Accessories

Included Accessories: Tremolo Arm, Hex Keys & User Manual
Truss Rod Wrench: 2.5 mm Hex
